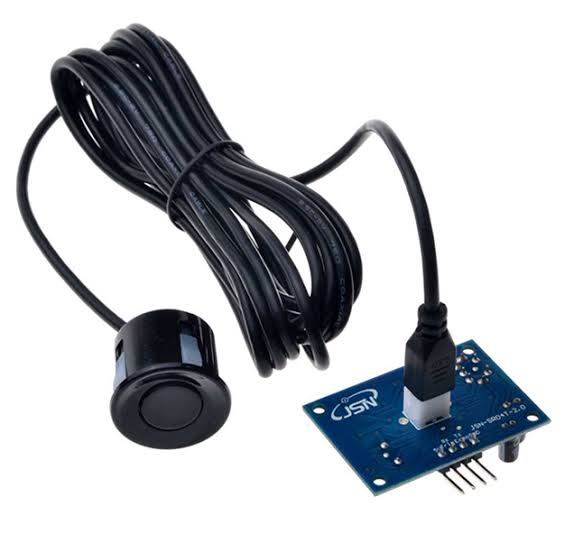

The JSN-SR04T is a waterproof ultrasonic distance sensor module featuring an IP65-rated integrated probe connected via a 2.5-meter cable. It operates at 5V DC, measures distances from 20 cm to 450 cm (up to 6m in optimal conditions), and functions similarly to the standard HC-SR04 while handling harsh, wet
Key Technical Specifications
- Operating Voltage: 5V DC
- Operating Current: 30 mA
- Measuring Range: 20 cm to 450 cm (approx. 2.5m to 4.5m effective)
- Resolution: 0.5 cm
- Working Temperature: -20°C to +70°C
- Probe Cable Length: 2.5 meters
