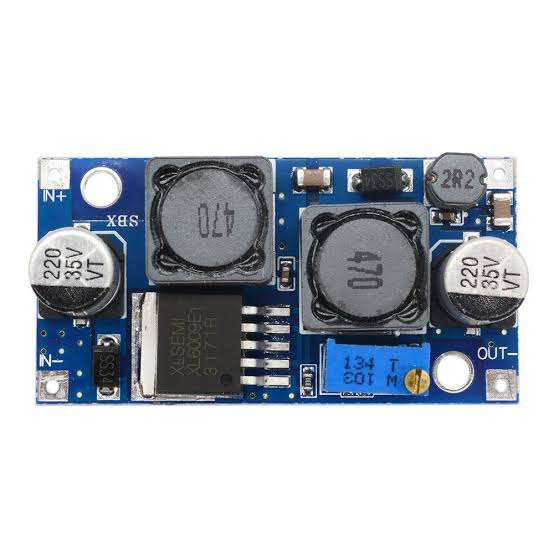

The XL6009 boost converter is a wide-input, high-performance DC-DC step-up module. It takes a lower direct current voltage and boosts it to a higher, adjustable output voltage. It handles up to 4A of peak switching current and achieves up to 94% conversion efficiency.
Key Specifications
- Input Voltage: 3V to 32V DC (best performance from 5V to 32V)
- Output Voltage: 5V to 35V DC (adjustable via onboard potentiometer)
- Switch Current: 4A max
- Switching Frequency: 400 kHz
- Efficiency: Up to 94%
