DESCRIPTION
1. With reverse connect protection, output 5V / 12V / 24V adjustable, beyond LM2577 performance. The built-in thermal protection, over-current protection reliability.
2. Wide input voltage range, the input voltage up to 35V.
3. Adjustable output voltage, maximum support 40V.
4. The built-in thermal protection, over-current protection full reliability protection circuit, high reliability.
5. System conversion efficiency can achieve 90% above, convenient thermal design.
6. TO263-5 l standard packaging, suitable for booster application within 30W.

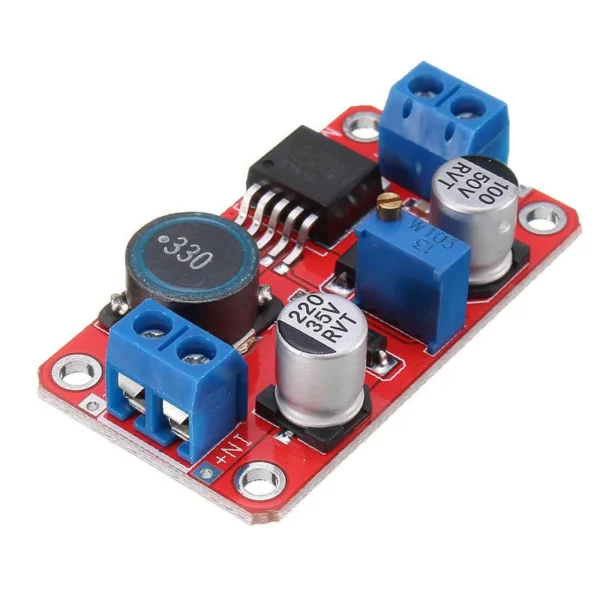

Specification:Name: XL6019 Boost
moduleSize: 50 x 28 x 13mm
Color: RedWeight: 20g
Package includes:1 x Adjustable boost power module
