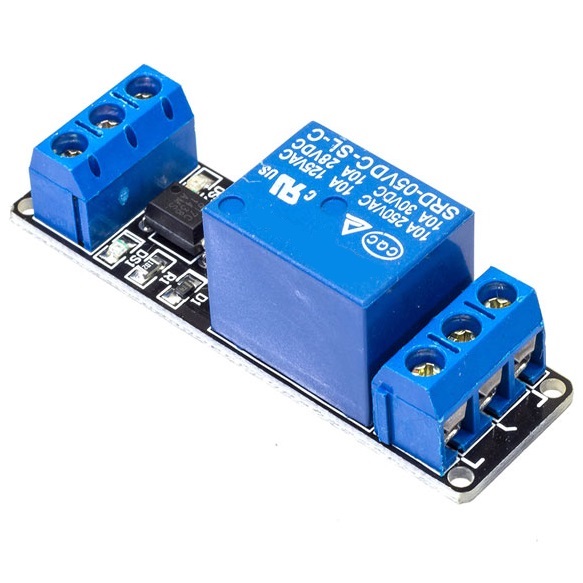

This 1 channel 5V 10A relay control board module with optocoupler modules is compliant with international safety standards, control and load areas isolation trenches it has a single relay a genuine. The inputs of 1 Channel 5V 10A Relay Module are isolated to protect any delicate control circuitry. The power supply and relay instructions, lit, a disconnect are off. The input signal, signal, common Terminal and start conducting. It can be used as a single chip module for appliance control and work with both DC or AC signals where you can control the 220V AC load. A wide range of microcontrollers such as Arduino, AVR, PIC, ARM and so on can control it.
- Operating Voltage(VDC): 5
- Max. Current(mA): 20
- Channel: 1
- Current Capacity at AC250V: 10A
- Current Capacity at DC30V: 10A
- Dimensions: 56x17x16mm
- High impedance controller pin
- Pull-down circuit for the avoidance of malfunction
- One normally closed contact and one normally open contact
- Triode drive, increasing relay coil
- Power supply indicator lamp
- Control indicator lamp
- With 4 fixed screw holes, hole diameter 3.1mm, convenient installation, and fixation
