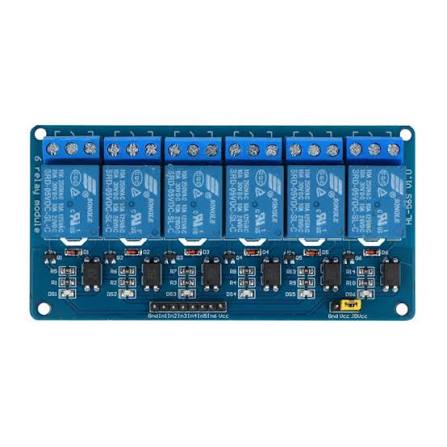

Key Technical Specifications
- Operating Voltage: 5V DC
- Number of Channels: 6 independent relays
- Maximum Load Capacity: 10A at 250V AC or 10A at 30V DC per channel
- Trigger Type: High or Low level trigger (selectable on many models)
- Isolation: Optocoupler / light coupling protection for safety
- Board Dimensions: Roughly 104 mm x 53 mm x 17 mm
