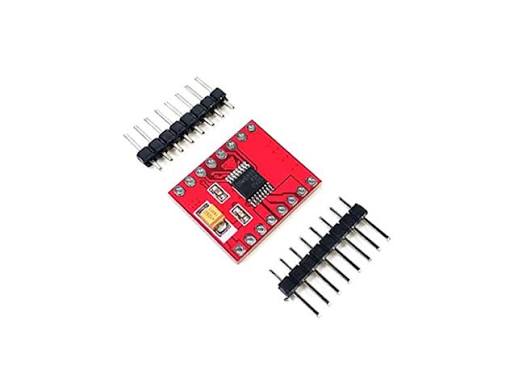

The DRV8833 Dual Motor Driver Carrier is a compact dual-channel H-bridge controller that operates on 2.7 V to 10.8 V and delivers 1.2 A continuous current per channel. It supports two DC motors or one bipolar stepper motor, featuring PWM speed control and built-in protections.
Key Technical Specifications
Operating Voltage: 2.7 V to 10.8 V (motor power supply)
Logic Voltage: 2.7 V to 5.5 V compatible (3V and 5V logic)
Output Current: 1.2 A continuous (2 A peak) per motor channel
Parallel Mode: Can deliver 2.4 A continuous (4 A peak) to a single motor
